Fast drilling speed
Source manufacturers
Crazy Sale Day: Submit the form to get order discounts and coupons!
Parameter | HW-RC500 |
Engine | Cummins |
Power | 132 KW |
Max. Drilling Depth | 400 m |
Hole Diameter | 105-400 mm |
Working Air Pressure | 1.6-6 MPa |
Air Consumption | 16-55 m鲁/min |
Rod Length | 3 m |
Recommended Rod Dia. | Φ102/Φ114 mm |
Recommended RC Dual-Wall Pipe Dia. | Φ102/Φ114 mm |
Feed Pressure (Thrust) | 7 T |
Hoisting Capacity (Pullback) | 25 T |
Hoisting Speed (Low) | 23 m/min |
Hoisting Speed (High) | 33 m/min |
Max. Rotary Torque | 10000/5000 Nm |
Max. Rotary Speed | 0-75 / 0-150 rpm |
Aux. Winch Capacity | 1.5 T |
Outrigger Stroke | 1.6 m |
Drilling Rate (Penetration Rate) | 10-35 m/h |
Travel Speed | 2.5 km/h |
Gradeability | 21º |
Weight | 12 T |
Overall Dimensions (LxWxH) | 7x2.1x2.8 m |
Suitable Formations | Various rock formations |
Drilling Method: | Top drive hydraulic rotation & feed, with DTH hammer or mud drilling |
Compatible Hammers | Medium & High Air Pressure Series |
Optional Equipment | Mud pump, centrifugal pump, generator, foam pump |
Key Features:

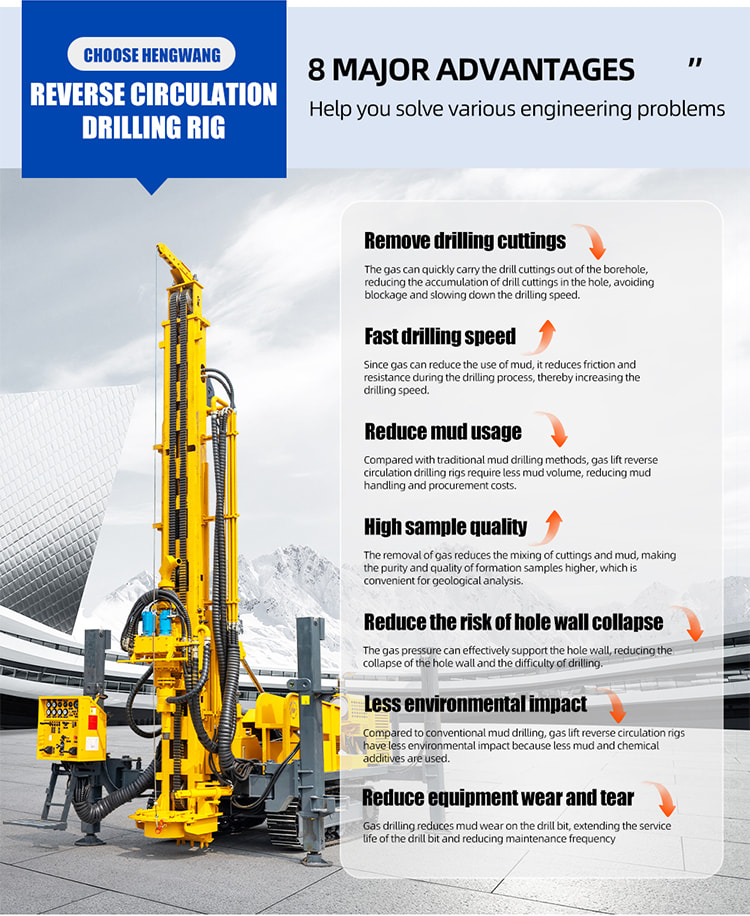

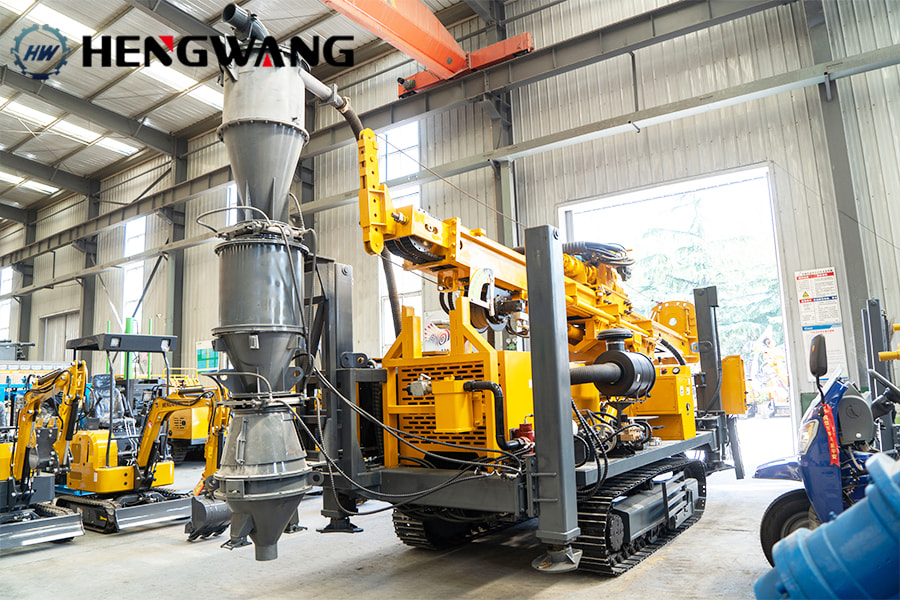

1. Air-Lift Reverse Circulation Technology:
The HW-500S utilizes advanced air-lift RC technology, which enhances sample recovery and drilling efficiency. This method allows continuous sampling
while reducing contamination, making it ideal for mineral exploration and water well projects.
2. High Drilling Depth and Efficiency:
With the ability to reach significant depths, the HW-500S is designed for heavy-duty drilling tasks. Its powerful air-lift system allows it to handle difficult
geological conditions while maintaining high drilling speeds, improving overall operational efficiency.
3. Reduced Operating Costs:
One of the key benefits of the HW-500S is its ability to lower operational costs. By using compressed air instead of conventional mud circulation, it reduces
the need for drilling fluids, lowering both material costs and environmental impact.
4. Excellent Sample Accuracy:
The HW-500S excels in producing uncontaminated, high-quality samples. The reverse circulation method ensures that samples are returned directly to
the surface, making it ideal for geological analysis, mineral exploration, and water well drilling where accurate data is crucial.
5. Rugged and Durable Design:
Built for harsh environments, the HW-500S boasts a durable and rugged design. Its robust components are designed to withstand extreme drilling
conditions, ensuring long-term reliability and minimal maintenance.
6. Versatility Across Applications:
The HW-500S is suitable for a wide range of drilling applications, including water well drilling, geothermal energy exploration, mining exploration,
and environmental drilling. Its adaptability to different terrains and project requirements makes it a valuable asset for drilling contractors.
Shandong Hengwang Group Co., Ltd., as one of the top drilling machinery and piling machinery suppliers in China, has 20 years of experience in the production of drilling rigs and piling machines.
