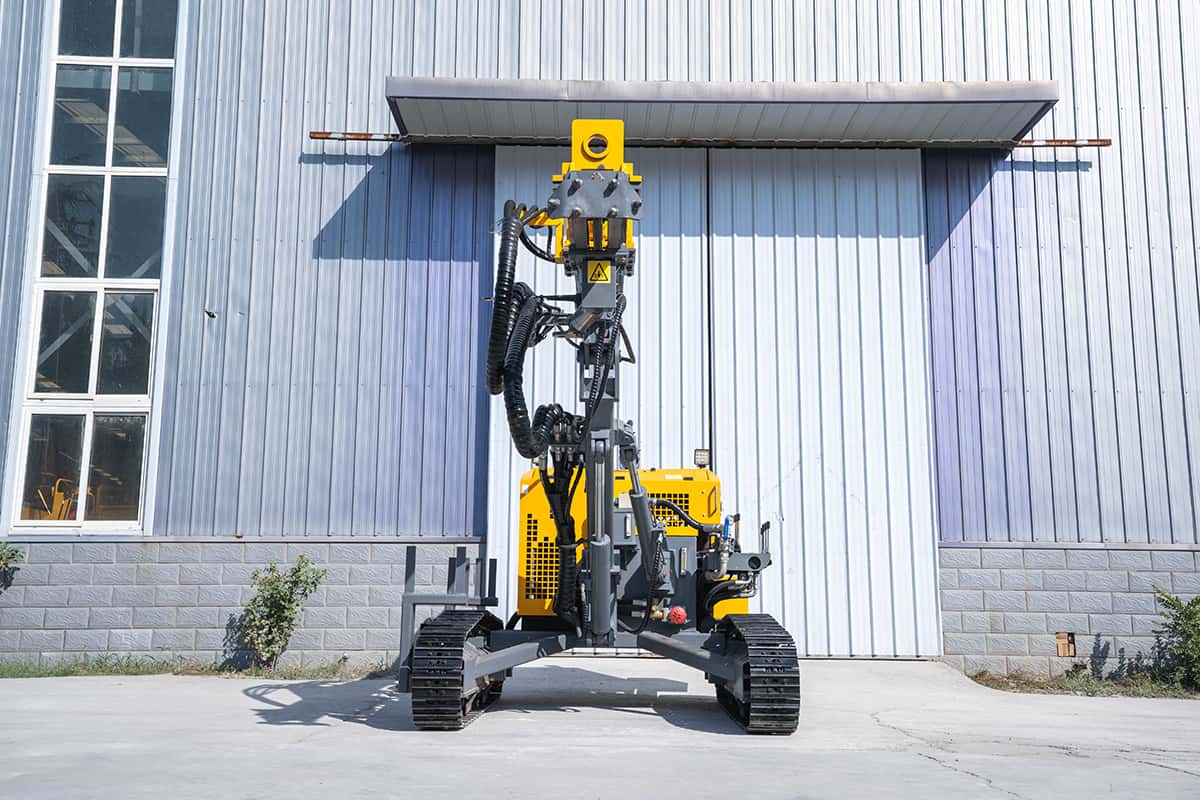

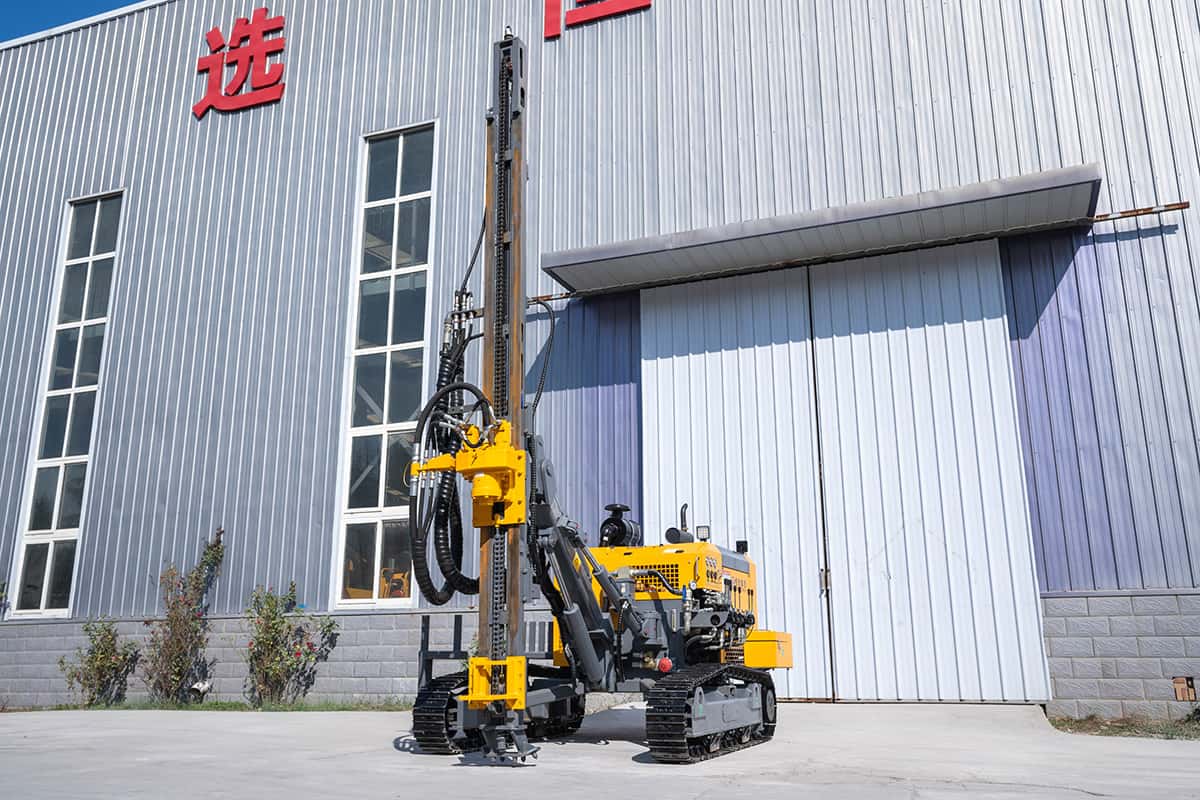

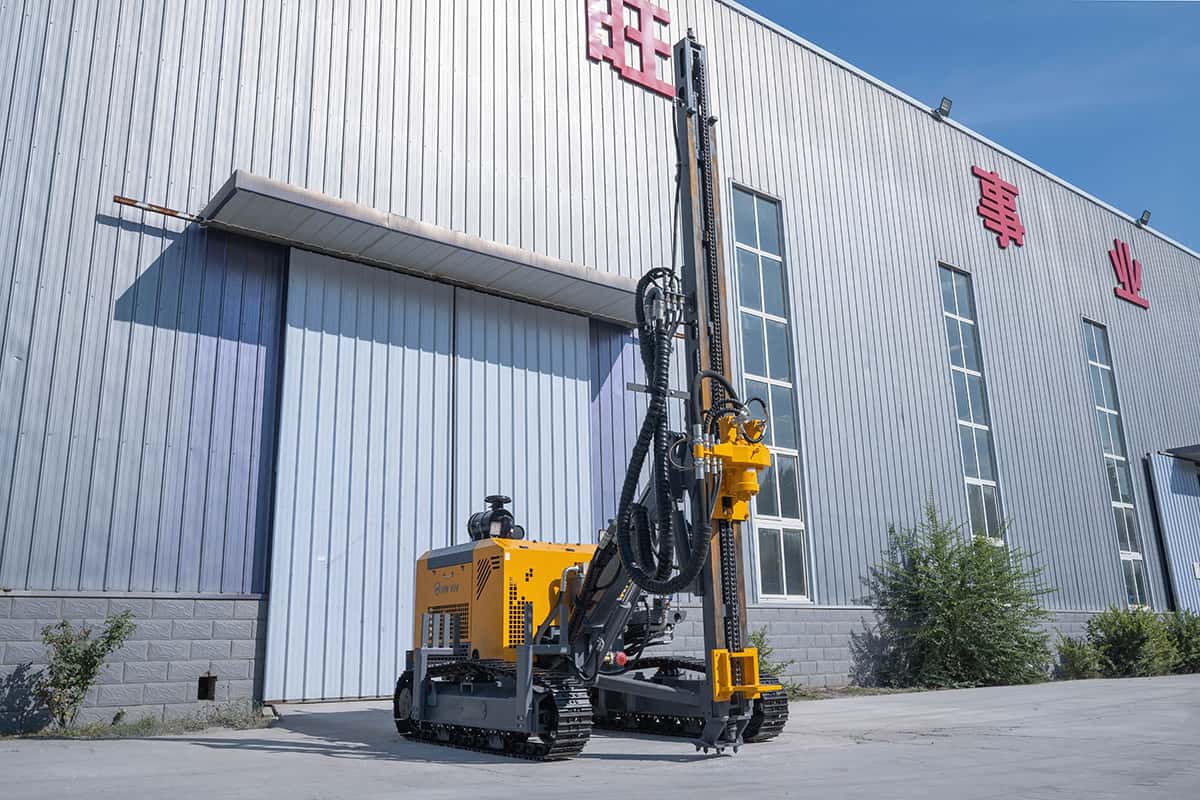

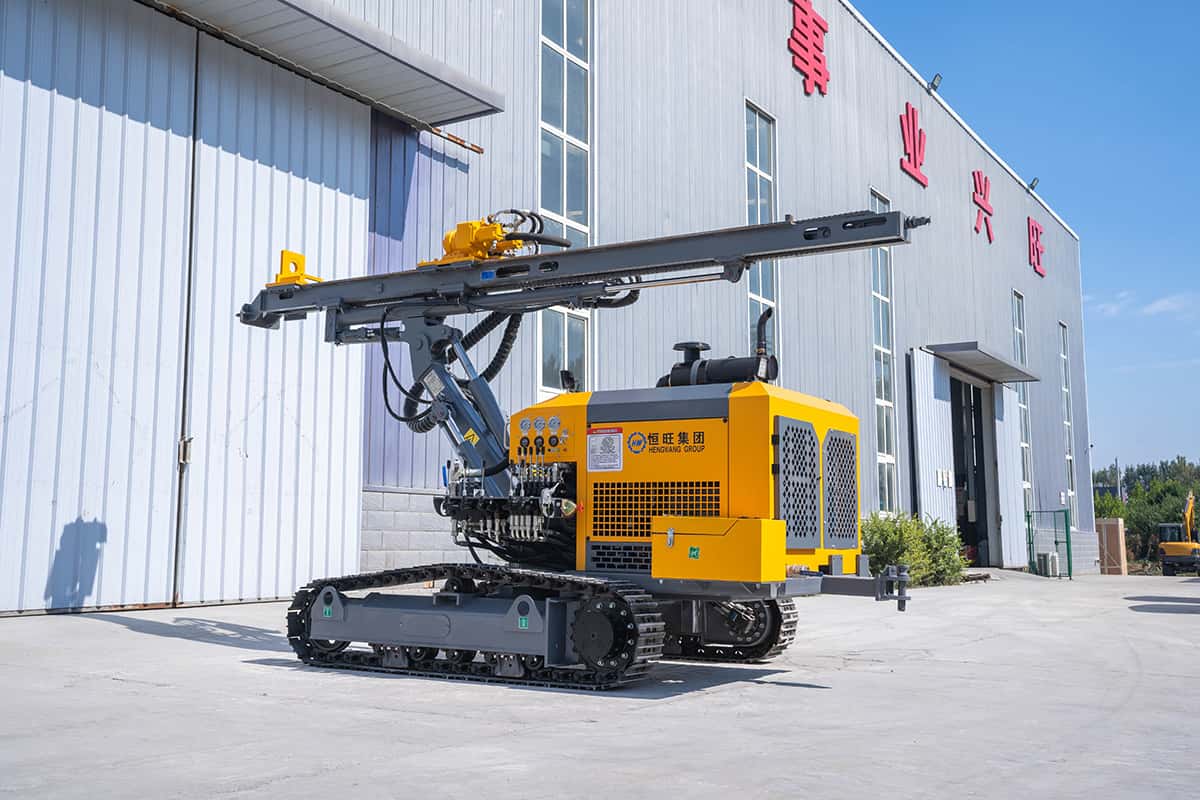

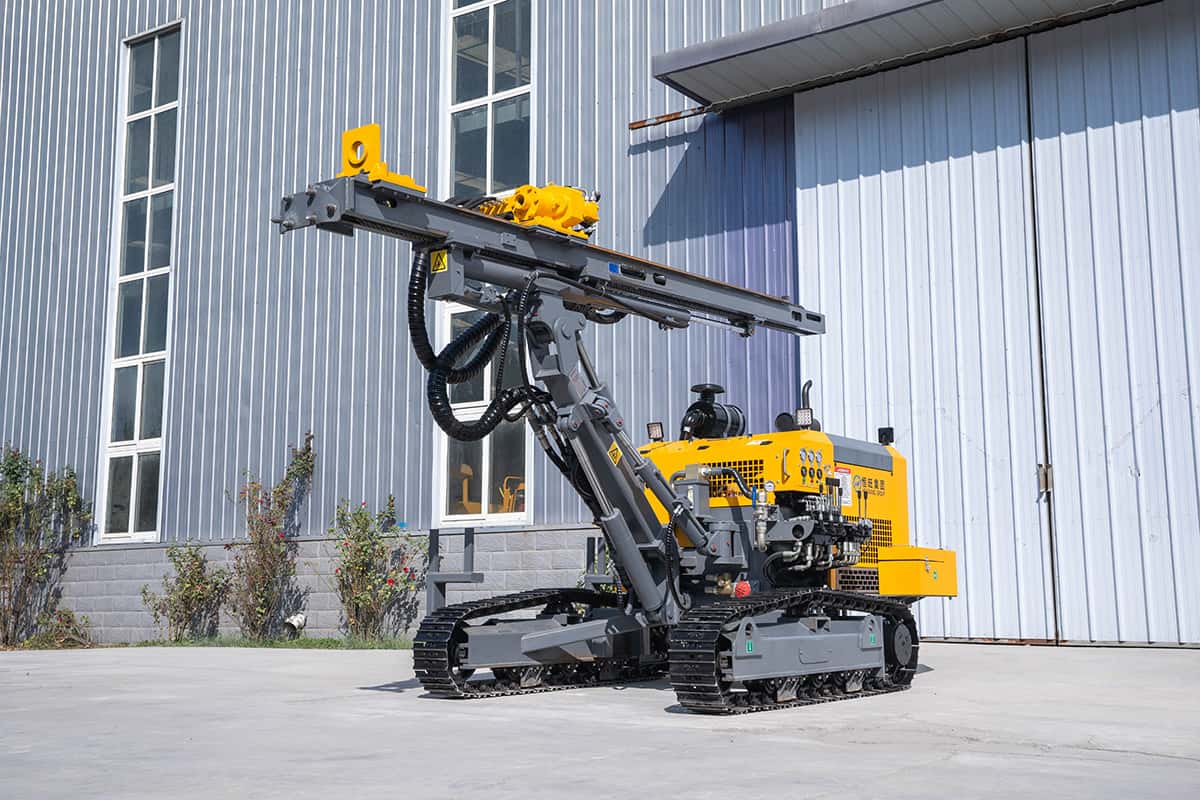

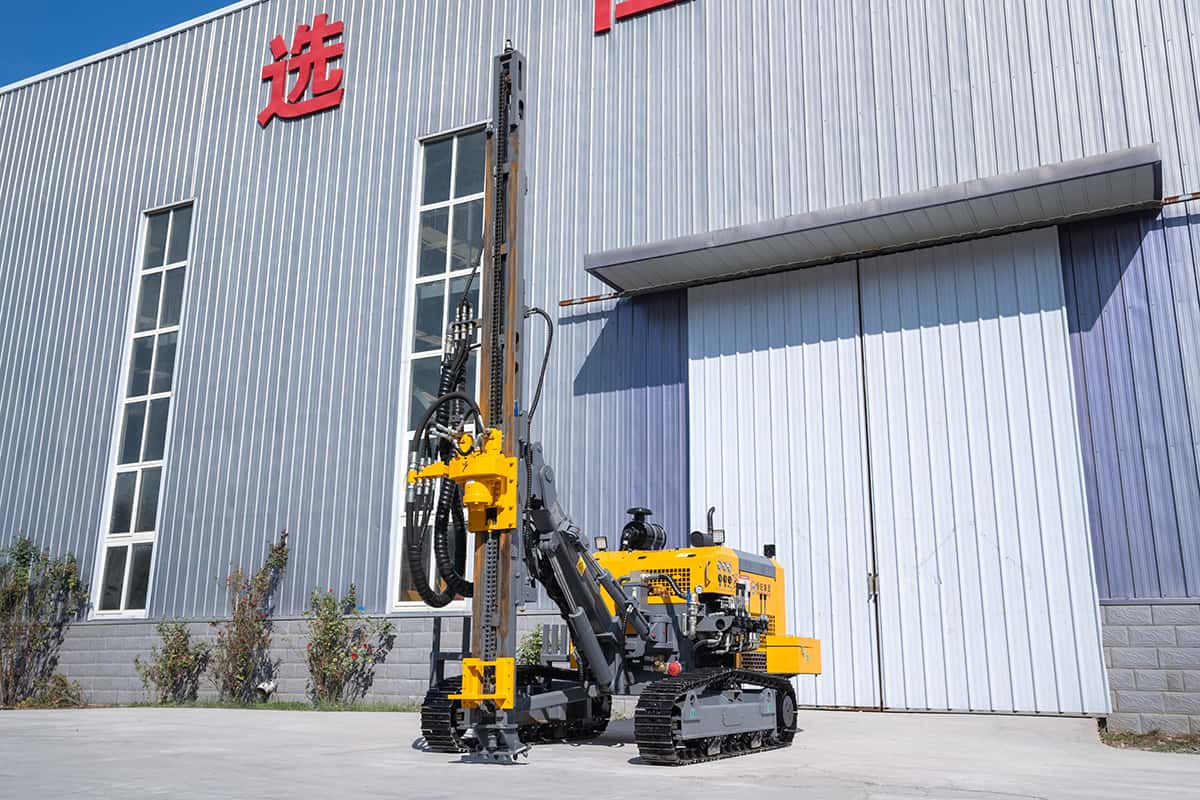

The HW916 DTH Drilling Rig is a high-performance, versatile drilling solution designed for efficiency and reliability in various challenging conditions. Equipped with a powerful Yuchai YCD4T22T-105A engine, it delivers robust performance with a power output of 78 KW. This rig supports drilling diameters of 90–100 mm and offers a maximum operating torque of 2400 N.m, ensuring effective penetration even in tough materials. With a rotation speed range of 0–150 rpm and propulsion and lifting forces of 15 KN and 25 KN respectively, the HW916 guarantees precision and control in drilling operations. Its compact transport size and optional dust collection system further enhance its adaptability and user convenience.

Key Selling Points:

• Powerful Engine: Features a reliable Yuchai YCD4T22T-105A engine providing 78 KW for consistent performance.

• High Torque Output: Delivers up to 2400 N.m of torque, enabling efficient drilling in demanding conditions.

• Adjustable Rotation Speed: 0–150 rpm range allows flexible operation based on ground material.

• Efficient Propulsion System: Cylinder chain propulsion method with 15 KN thrust and 25 KN lifting force.

• Compact and Mobile: Designed with a transport size of 5700×2100×2600 mm and gradeability of 30° for easy movement and operation on rough terrain.

• Optional Dust Control: Configurable dust collection system for improved working conditions and environmental compliance.

• Durable and Stable: Weighing 4800 kg, the rig ensures stability during operation while maintaining maneuverability.
